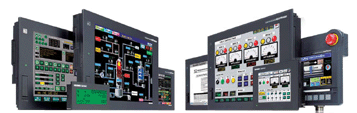

Mitsubishi Touch Screen GOT1000
 | Powerful 64-bit RISC processor and high memory capacity means faster operation and clearer displays |
| Easy access USB port for programming and maintenance |
| Manifold possibilities for storing and transporting project data |
| Full iQ platform integration possibility |
|
Model |
GT10 | GT11 | GT12 | GT15 | GT16 | |
| Display | Type | STN | STN | TFT | STN, TFT | TFT |
| Dimensions (diagonal) | 3.7"-4.5" | 5.7" | 8.4"-10.4" | 5.7"-15" | 8.4"-15" | |
| Texy (lines x characters) | Freely definable | Freely definable | Freely definable | Freely definable | Freely definable | |
| Character hight (mm) | Freely definable, Windows fonts | Freely definable, Windows fonts | Freely definable, Windows fonts | Freely definable, Windows fonts | Freely definable, Windows fonts | |
| Max resolutions (pixle) | 160x64/288x96 | 320x240 | 640x480 | 320x240 to 1024x768 | 640x480 to 1024x768 | |
| Power supply | 5VDC / 24VDC | 24VDC | 100-220VAC | 24VDC/220VAC | 24VDC/220VAC | |
| Memory capacity | 512kb/1.5mb | 3mb | 6mb | 5-9mb (expandable to 57mb) | 15mb (expandable to 57mb) | |
| External memory card | --- | 1 (CF, 2gb max) | 1 (CF, 2gb max) | 1 (CF, 2gb max) | 1 (CF, 2gb max) | |
| Key type | Touch panel | Touch panel | Touch panel | Touch panel | Touch panel | |
| Function keys | Touch keys | Touch keys + 6 function keys | Touch keys | Touch keys | Touch keys | |
| LED indicators | --- | 1 (Power ON) | 1 (Power ON) | 1 (Power ON) | 1 (Power ON) | |
| Interfaces | Serial | 2 x RS232, RS422/RS232 | RS232C, RS422 | RS232, RS422/RS485 | RS232 | RS232, RS422/RS485 |
| Others | USB wiht out GT1020/1030 | USB | USB | USB (at the front) | 2 x USB (at the front) | |
| Network capability | Serial | Serial | Ethernet (TCP/IP) | Ethernet (TCP/IP), CC-Link, RS422, RS485, A-Bus, Q-Bus, Melsecnt/10/H | Ethernet (TCP/IP), CC-Link, RS422, RS485, A-Bus, Q-Bus, Melsecnt/10/H | |
| Protection (front) | IP67 | IP67/IP65 (Handy GOTs) | IP67 | IP67 | IP67 | |
