Mitsubishi Programmable Controller (PLC) FX Series
 | Worldwide
compatibility thanks to their wide power supply range the FX controllers can be used all over the world |
|
Internationally approved MELSEC FX controllers conform to all major international industrial standards and maritime classifications |
| Flexible
solutions the base unit can be combined with optional expansion and special function modules to configure a system that is precisely geared to the needs of your application |
| Simple
programming complex functions can be combined and executed with a single instruction |
| Speed the entire FX family has always set the standards for execution speed (FX3U: 0.065µs per logical instruction) |

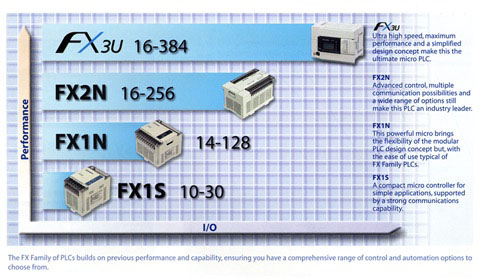

| Compatibility The lines in the FX family are different and independent products, but they are still fully compatible with one another |
| Type | FX1S | FX1N | FX2N | FX3U |
| Power supply | 100–240 VAC/ 24 VDC | 100–240 VAC/ 24 VDC | 100–240 VAC/ 24 VDC | 100–240 VAC/ 24 VDC |
| No. of inputs | 6–16 | 8–36 | 8–64 | 8–64 |
| No. of outputs | 4-14 | 6–24 | 8–64 | 8–64 |
| Digital outputs | Relay, transistor | Relay, transistor | Relay, transistor | Relay, transistor |
| Program cycle period per logical instruction | 0.55–0.7 µs | 0.55–1 µs | 0.08 µs | 0.065 µs |
| User memory | 2k steps EEPROM (internal) | 8k steps EEPROM (internal), EEPROM/EPROM cassettes (optional) | 8k steps PLC-Program (RAM internal), optional 16 k RAM/EEPROM | 64k steps (standard), FLROM cassettes (optional) |
| Global use A wide range power supply means your Modular System Q will work all over the world and with the huge range of shipping approvals, CE compliance, as well as manufacturing to Automotive industry quality levels, SystemQ is a product to trust. |

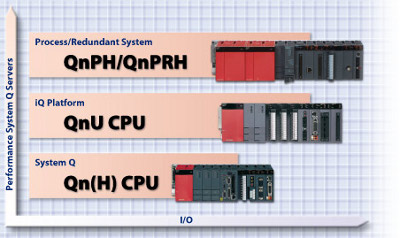

| Totally scalable System Q is designed to grow with your application, from the Q00J standalone solution to the networked and redundant process CPU Q25PRH. System Q's platform concept allows you to add and customize the special functions you need. |
| Multi CPU The SystemQ Automation Platform allows you to use multiple CPU’s on a single backplane. You can combine up to four CPU types, such as PLC, Motion, PC, Q-C and Process CPU’s, as a single seamless solution. |
| Multi network connectivity From basic AS-Interface to Ethernet based networks, System Q can communicate easily with Mitsubishi or third party products. To increase the productivity in your plant, System Q can also provide a direct connection to any database based on SQL via an Ethernet connection. |
| Flexibility The wide range of power supplies, CPU’s, I/O Modules, Special Modules and Communication Modules makes System Q one of the most flexible modular automation systems in the world. |
| Dual redundancy The redundant Process CPUs Q12/25PRH can, with standard PLC technology, provide a hot standby system with the automatic synchronization of data. The modular concept also allows different degrees of redundancy from power supply and control systems to redundant network modules. |
| Type | MELSEC System Q |
| Power Supply | 100-240V AC/ 24V DC |
| Inputs/Outputs | 32-4096 |
| Digital Outputs | Relay, transistor, triac |
| Cycle period/log.instr. | 0.034 - 0.2 µs |
| PLC program memory | 8 to 252 k steps |
